QwikPad®

for Generators + Accessories

QT8200 | QT8201 | QT8210 | QT8215 | QT8220 | QT8230 | QT8240

Weighs only 46 lbs when
unfilled & 330 lbs filled

Lightweight wind-rated pad up to 180mph

UV Resistant, Ultra-Durable, & Warranty Protected

Made on the Space Coast in Florida, USA

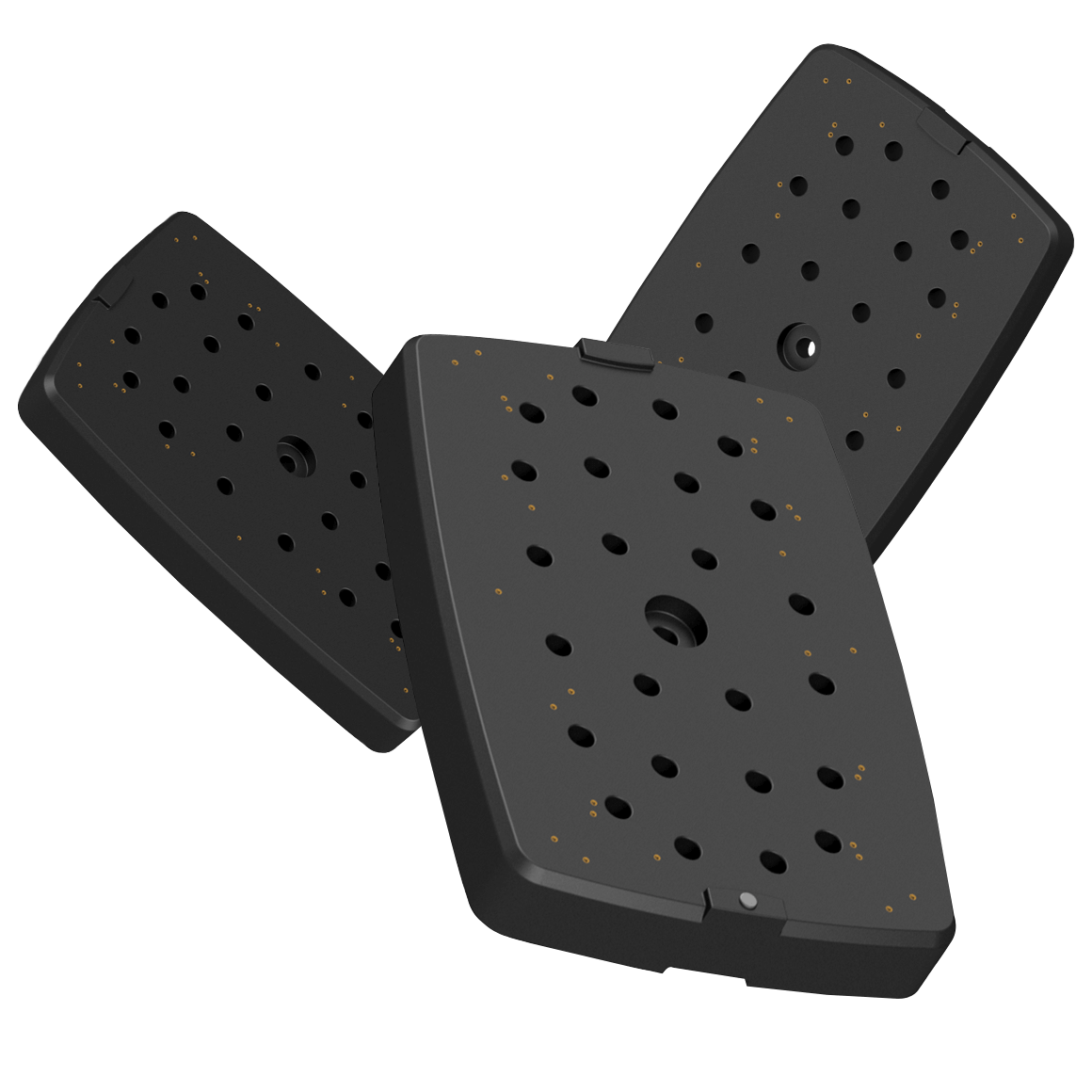

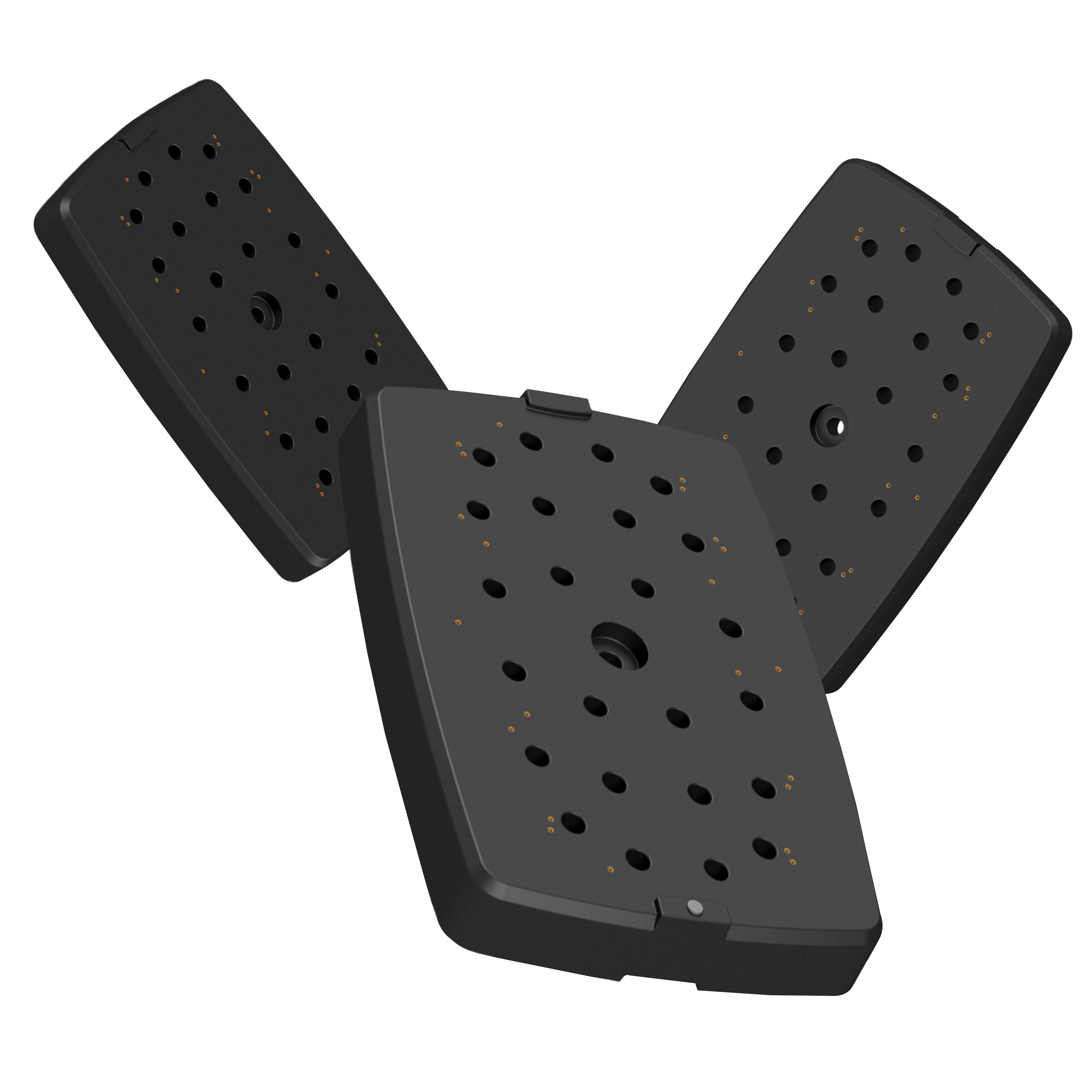

QwikPad® for Generators is a lightweight, easy-to-install generator pad that meets wind loading requirements up to 180 mph. Includes corrosion-resistant stainless steel mounting hardware specific to the mounted generator model.

LEARN MORE

Specifications

QwikPad® For Generators

The only lightweight, easy-to-install, generator pad that meets hurricane-rated wind loading requirements up to 180 mph (QT8201, QT8210, QT8215, QT8220, QT8230, and QT8240)

Dimensions: 56x35x5
Material: Linear Low Density Polyethylene
Pad Weight (Empty): 46 lbs
Pad Weight (Filled): 330 lbs
Rated Wind Speed: 180 MPH

The Florida Building Code rated generator support pad is lightweight when purchased, but weighs enough to meet code requirements up to 180 mph wind loading when filled with water and secured with stainless steel hardware (supplied). Each pad includes a unique gelling agent that, once water is added, forms a solidus gel. Optional ground and concrete anchors provide additional hurricane protection when needed. U.S. Patent #10,557,589 and other Patents Pending

QwikPad® P/N	Description of Generator to be Mounted
QT8200 (Legacy)	Universal Pad (includes hardware for Generac/Honeywell and Kohler RES/RCA Generators)
QT8201	Universal Pad (includes hardware for Generac/Honeywell, Kohler RES/RCA, and Cummins Generators)
QT8210	For Briggs and Stratton® 17/20 kW Steel Enclosure Generators (hardware included)
QT8215	For Briggs and Stratton® 17/20/26 kW Power Protection Series Generators (hardware included)
QT8220	For Briggs and Stratton® 20 kW Aluminum Enclosure Generators (hardware included)
QT8230	For Generac/Honeywell® 9-26 kW Generators (hardware included)
QT8240	For Kohler® 14/20 kW RES/RCA Generators (hardware included)

*SEE FULL INSTALLATION INSTRUCTIONS INCLUDED WITH PRODUCT PURCHASE, OR DOWNLOAD THE PDF HERE NOTE: In areas that experience freezing temperatures, only fill the QwikPad^® for Generators 80% full for increased lifetime. This can be done by only filling the pad with water to a depth of 3 inches – when filling, use a dip-stick or straw to periodically check liquid height. With 80% fill, you can meet wind load ratings of 125 MPH+ without anchors and 175 MPH+ with anchors for all supported generator models.

Choose acceptable equipment pad size and anchoring method that meets wind loading requirements in your area. Use the load tables included with the QwikPad® for Generators.
Tip pad towards fill port corner. This will cause gelling agent to collect near fill port for proper distribution when filling.
If necessary, embed pad 1" deep in level compacted ground. Otherwise, simply place pad on level compacted ground in desired location.
Fill pad with tap water - DO NOT OVERFILL. Water will solidify into gel over time.
Install concrete or ground anchors, when required.
Secure the equipment to the pad using included hardware and tie-down assemblies.
